EMSCO FB1300 Fluid End Parts Drilling Rig Mud Pump Parts

Brand Name : EMSCO Replacement parts

Model Number : FB1300,FB1600

Certification : ISO9001

Place of Origin : China

MOQ : 1sets

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2sets/month

Delivery Time : 30days

Packaging Details : Wooden

Product : EMSCO FB1300 Fluid End Parts API Standard

P/N : 6316-0375-00

Application : Drill mud pump parts

Industry : Drilling oil & gas

Type : Drilling Rig Mud Pump Parts

Keyword : EMSCO

Contact Now

Drilling Rig Mud Pump Parts EMSCO FB1300 Fluid End Parts API Standard


ItemNo. OEM PARTNo. ORIGINAL DESCRIPTION DESCRIPTION & Remark
1 6316-0375-00 FLUID END ASSEMBLY FLUID END MODULE ASSEMBLY(COMPLETE)
2 6316-0357-00 FLUID END, STUDDED FLUID END MODULE STUDDED (INCL. ITEMS 2A-9)
2A 6316-0356-00 FLUID END FLUID END MODULE ONLY
3 7507-2201-00 STUD 1” STUD,LINER THREAD RING TO MODULE
4 7601-0610-18 NUT,1”-8 HEX NUT,1”-8 HEX,LINER THREAD RING TO MODULE STUD NUT
5,6 7507-2210-00 STUD 1-1/2” STUD,MODULE TO POWER FRAME,AND, CYLINDER THREAD RING TO MODULE
7 7601-0630-17 NUT,1-1/2”-8 HEAVY HEX NUT,1-1/2”-8 HEAVY HEX,MODULE TO POWER FRAME STUD NUT, AND ,CYLINDER THREAD RING TO MODULE STUD NUT
8 7507-2108-00 STUD 1-1/4” STUD, MODULE TO DISC. MANIFOLD
9 7601-0630-24 NUT,1-1/4”-8 HEAVY HEX NUT,1-1/4”-8 HEAVY HEX,MODULE TO DISCHARGE MANIFOD STUD NUT
10 6316-0354-00 GUIDE,BUSHING AND LOWER VALVE LOWER VALVE GUIDE WITH BUSHING
11 6316-0096-00 BUSHING,VALVE GUIDE BUSHING, LOWER VALVE GUIDE
12 6316-0360-00 BOLT, VALVE GUIDE LOCK BOLT, LOWER VALVE GUIDE LOCK
13 6316-0363-00 RING,ALIGNMENT RING ALIGNMENT
14 6316-0369-00 SEAL HEAD GASKET, CYLINDER HEAD
15 6316-0364-00 PLUG CYLINDER HEAD PLUG, CYLINDER HEAD
16 6316-0361-00 RING, CYLINDER THREAD THREADED RING, CYLINDER HEAD
17 6316-0362-00 HEAD CYLINDER CYLINDER HEAD
18 6316-0092-00 SEAL,VALVE POT COVER SEAL, VALVE POT COVER
19 7501-0051-00 SCREW, RETAINER SCREW, RETAINER, UPPER VALVE
20 6397-0603-00 RETAINER, VALVE GUIDE RETAINER, UPPER VALVE GUIDE
21 6397-0575-00 GUIDE, UPPER VALVE GUIDE, UPPER VALVE
22 6316-0039-00 COVER, VALVE POT VALVE POT COVER
23 6316-0373-00 SEAL GASKET, WEAR PLATE
24 6316-0365-00 PLATE, WEAR WEAR PLATE
25 6316-0373-00 SEAL, LINER GASKET, LINER
26 6316-0366-00 RING, LINER THREAD THREAD RING, LINER
27 6316-0367-00 LOCK LINER LINER LOCK
28 7602-1600-25 O-RING O-RING, DISCHARGE MANIFOLD
29 7602-1600-61 O-RING O-RING, SUCTION MANIFOLD

EMSCO FB1300 Fluid End Parts Drilling Rig Mud Pump Parts


Our advantage

1.Customer -Focused, to provice reliable and efficient one-stop worry-free service
2. High quality pumps parts supplier
3. Assurance pf reliable source
4. Flexible solutions for all your questions
5.safe and convenient logistics channel
6. perfect after-sale tracking service team, provice one to one service to customers in time


Product Tags:

FB1300 Drilling Rig Mud Pump Parts



FB1300 Fluid End Parts



EMSCO Fluid End Parts


Quality EMSCO FB1300 Fluid End Parts Drilling Rig Mud Pump Parts for sale

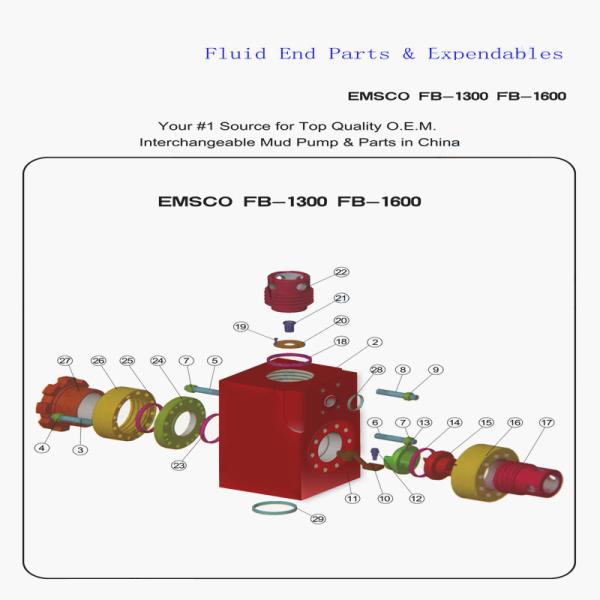

EMSCO FB1300 Fluid End Parts Drilling Rig Mud Pump Parts Images
